Kia Optima: Component Location Index - Components and Components Location - Air Conditioning System - Heating,Ventilation, Air Conditioning - Kia Optima TF 2011-2020 Service ManualKia Optima: Component Location Index

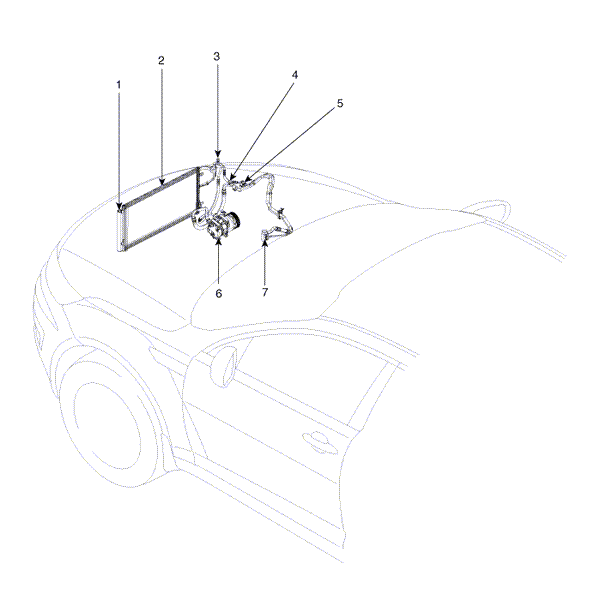

Engine Room

1. Receiver Drier
2. Condenser
3. Service Port (High)
4. Service Port (Low)
5. A/C Pressure Transducer
6. Compressor
7. Expansion Valve
