Kia Optima: 26 Brake Control Solenoid Valve(26/B_VFS). Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle System - Kia Optima TF 2011-2019 Service ManualKia Optima: 26 Brake Control Solenoid Valve(26/B_VFS). Schematic Diagrams

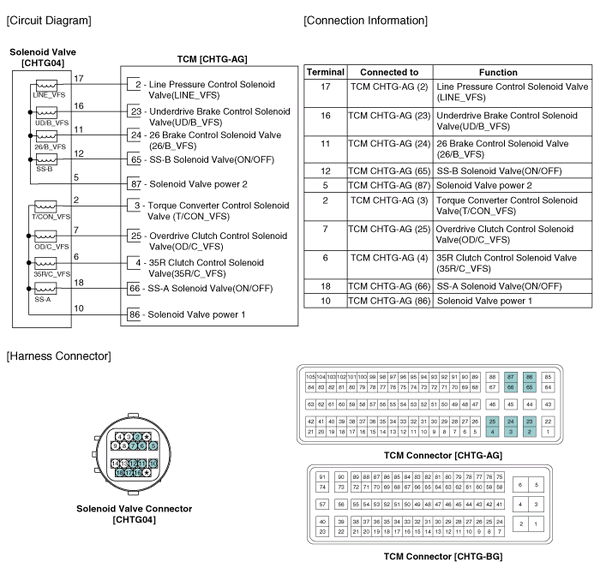

Circuit Diagram


26 Brake Control Solenoid Valve(26/B_VFS). Specifications
Specifications Direct control VFS[26/B]▷ Control type : Normal low type Control Pressure kpa(kgf/cm², psi) 9.81~500.14(0.1~5.1, 1.42~72.54) Curren ...

26 Brake Control Solenoid Valve(26/B_VFS). Repair procedures
...
