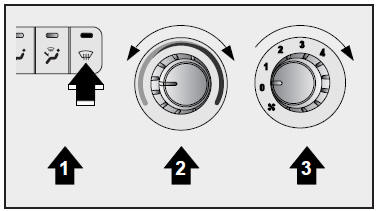

1. Set the mode selection switch to the
position.
When you select position, the system
automatically turns on the outside (fresh) air mode.
2. Set the temperature control knob to the extreme right/hot position
3. Set the fan speed control knob to the “3” or “4” position.
WARNING
Do not use the or
position during cool operation in extremely
humid weather. The difference between the temperature of the outside air and that
of the windshield could cause the outer surface of the windshield to fog up, causing
loss of visibility. In this case, set the mode selection knob to the
position and fan speed control knob
to the lower speed.
✽ NOTICE
If you don’t want outside (fresh) air when operating in either of these modes, air intake control switch again will deactivate the outside (fresh) air mode.
