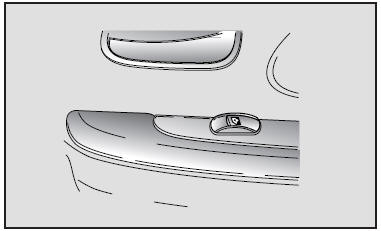

To open a window, press down on the front portion of the power window switch. To close a window, pull up on the front portion of the power window switch.
✽ NOTICE
The driver’s door window “LOCK” switch must be in the OFF position (not depressed) to operate the passenger door windows.
