Kia Optima: Relay Box (Passenger Compartment). Components and Components Location - Fuses And Relays - Body Electrical System - Kia Optima TF 2011-2026 Service ManualKia Optima: Relay Box (Passenger Compartment). Components and Components Location

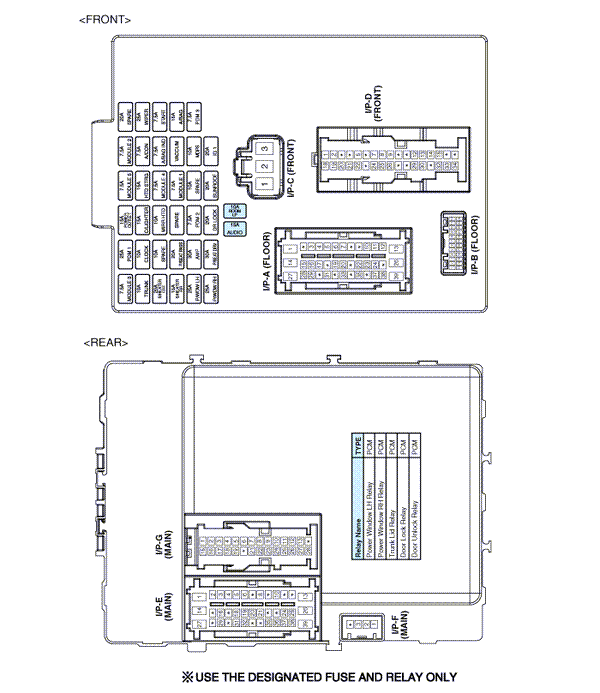

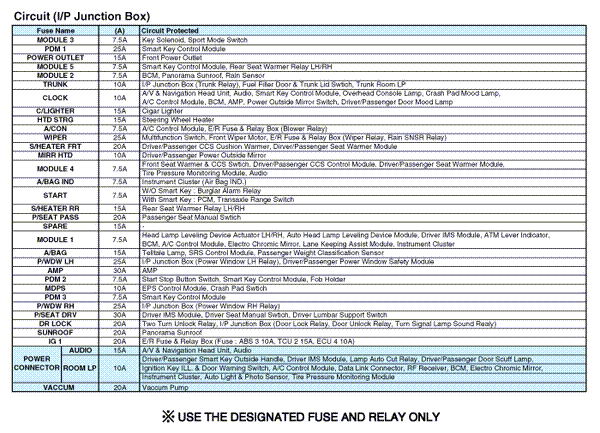

Components
