Kia Optima: Relay Box (Engine Compartment). Components and Components Location

Components and Components Location

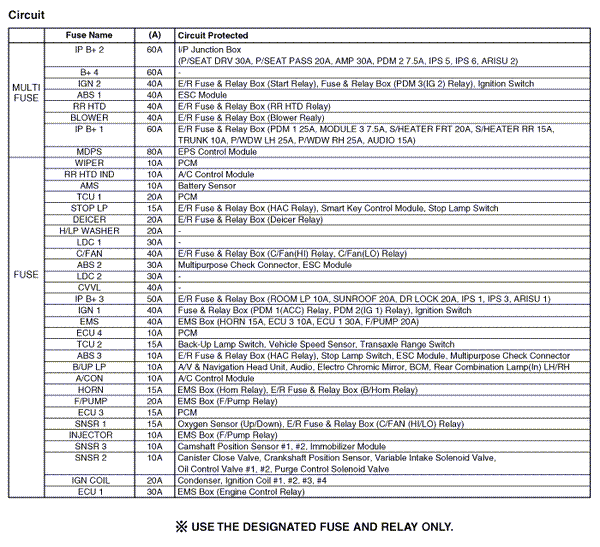

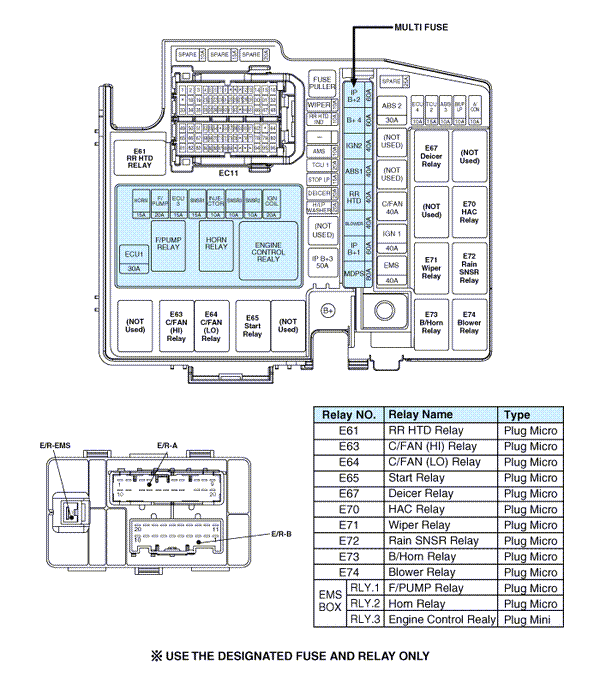

Component Location 1. Deicer relay 2. Not used 3. HAC relay 4. Rain sensor relay 5. Blower relay 6. B/Horn relay 7. Wiper relay 8. Not used 9. Not use ...
