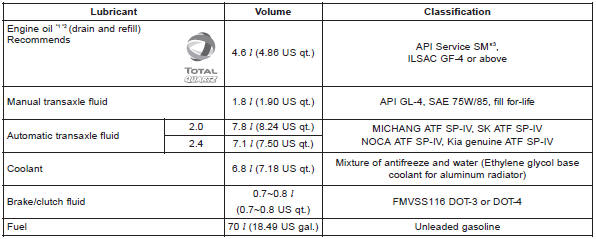

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1 Refer to the recommended SAE viscosity numbers on the next page.
*2 Engine oils labeled Energy Conserving Oil are now available. Along with other
additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these
improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3 If the API service SM engine oil is not available in your country, you are
able to use API service SL.
Battery
Sensor. Description and Operation
Description
Vehicles have many control units that use more electricity.
These units control their own system based on information from diverse sensors.
It is important to have a stable power su ...
Replacement
1.
1. Disconnect the negative (-)
battery terminal.
2.
Remove the main crash pad lower
cover (A).
3.
Disconnect the power mosfet connector
...
Component (1)
Connector Pin Information
No
Connector A (14P)
No
Connector B (26P)
1
GND 1
1
-
15
...
