Kia Optima: Rear Door. Components and Components Location
Components
|

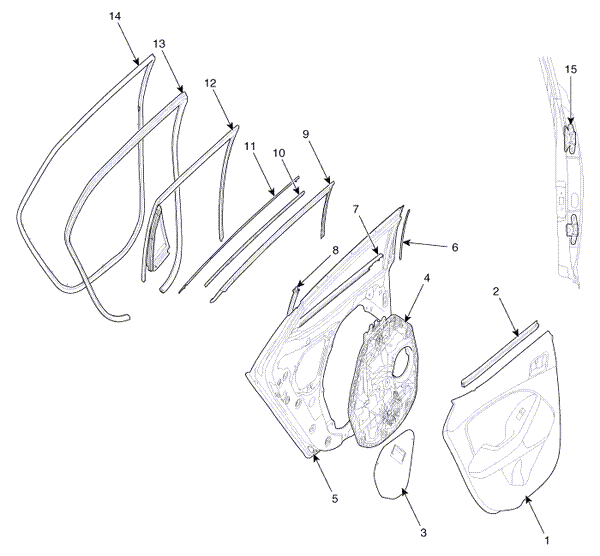

1. Rear door trim 2. Rear door belt inside weatherstrip 3. Rear door trim seal 4. Rear door module 5. Rear door panel 6. Rear door side molding 7. Rear door belt outer weatherstrip 8. Rear door DIV channel |
9. Rear door upper opening weatherstrip 10. Rear door opening weatherstrip mounting molding 11. Rear door frame molding 12. Rear door window glass run & rear door fixed glass 13. Rear door body side weatherstrip 14. Rear door side weatherstrip 15. Rear door hinge |
Adjustment
Glass Adjustment
•
Check the glass run channel
for damage or deterioration, and replace them if necessary.
...
