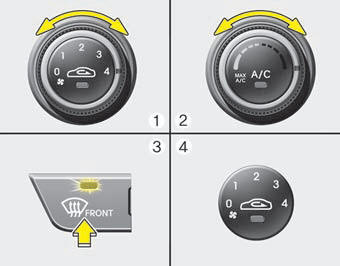

To defog inside windshield
1. Select any fan speed except “0” position.
2. Select desired temperature.
3. Select the or
position.
4. The outside (fresh) air
will be selected automatically.
If the outside (fresh) air position is not selected automatically, press the corresponding button manually.

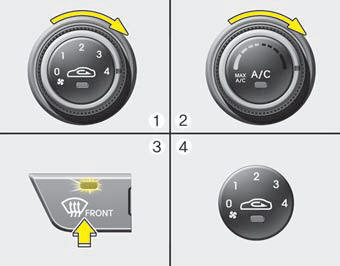

To defrost outside windshield
1. Set the fan speed to the highest (extreme right) position.
2. Set the temperature
to the extreme hot position.
3. Select the
position.
4. The outside (fresh) air
will be selected automatically.
Description
Network ConfigurationThe Network of the SJB(Smart Junction Box) consists of Low
speed CAN as shown in the following figure.
Termination ResistorThe cluster has CAN termination resistor. It is p ...
General Safety Information and Caution
Safety Precaution
Since hybrid vehicles contain a high voltage battery, if the
high voltage system or vehicles are handled incorrectly, this might lead
to a ser ...
Front Body C
Engine mounting bracket hole (Ø11)
Transaxle mounting hole (Ø13)
Engine mounting bracke ...
