Kia Optima: Jump Starting Procedure - Jump Starting - Emergency Starting - In Case Of An Emergency - Kia Optima MS/Magentis 2000-2005 Owners ManualKia Optima: Jump Starting Procedure

1. Make sure the booster battery is 12-volt and that its negative terminal is grounded.

2. If the booster battery is in another vehicle, do not allow the vehicles to touch.

3. Turn off all unnecessary electrical loads.

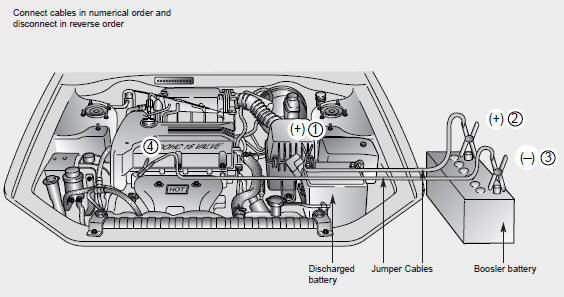

Connecting Jumper Cables

4. Turn off all unnecessary electrical loads.

4. Turn off all unnecessary electrical loads.

5. Connect the jumper cables in the exact sequence shown in the previous illustration. First connect one end of a jumper cable to the positive terminal of the discharged battery, then connect the other end to the positive terminal on the booster battery. Proceed to connect one end of the other jumper cable to the negative terminal of the booster battery, then the other end to a solid, stationary, metallic point (for example, the engine lifting bracket) away from the battery. Do not connect it to or near any part that moves when the engine is cranked. Do not connect the jumper cable from the negative terminal of the booster battery to the negative terminal of the discharged battery. Do not allow the jumper cables to contact anything except the correct battery terminals or the correct ground. Do not lean over the battery when making connections.

6. Start the engine of the vehicle with the booster battery and let it run at 2,000 rpm, then start the engine of the vehicle with the discharged battery.

If the cause of your battery discharge is not apparent, you should have your vehicle checked by an authorized Kia dealer.
