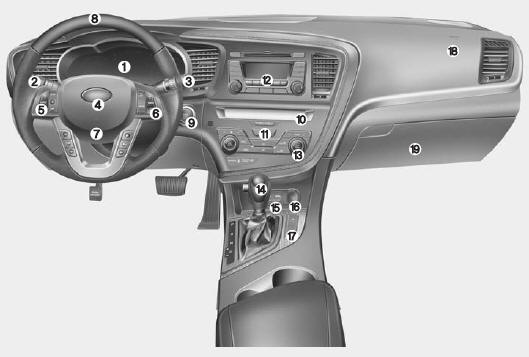

1. Instrument cluster 2. Light control / Turn signals 3. Wiper/Washer 4.

1. Instrument cluster
2. Light control / Turn signals
3. Wiper/Washer
4. Horn
5. Steering wheel audio control*
6. Auto cruise control*
7. Drivers air bag
8. Steering wheel
9. Ignition switch* or ENGINE START/STOP button*
10. Digital clock
11. Hazard
12. Audio*
13. Climate control system
14. Shift lever
15. Aux, USB and iPod port*
16. Power outlet*
17. Seat warmer*
18. Passengers air bag
19. Glove box
* : if equipped

Interior overview
1. Driver position memory system* 2. Door lock/unlock button 3. Outside rearview mirror control switch* 4. Power window lock button* 5. Power window switches* 6. Central door lock switch* 7. Ins ...

Engine compartment
2.4L Engine 2.0L Engine 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake/clutch* fluid reservoir 4. Air cleaner 5. Fuse box 6. Positive battery terminal 7. Negative battery term ...
