Kia Optima: Headlight Replacement - Bulb Replacement - Maintenance - Kia Optima MS/Magentis 2000-2005 Owners ManualKia Optima: Headlight Replacement

WARNING - Halogen Bulbs WARNING - Halogen Bulbs

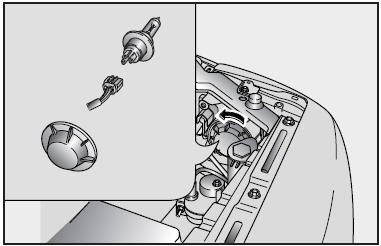

1. Remove the headlight bulb cover by turning it counterclockwise.

1. Remove the headlight bulb cover by turning it counterclockwise.
2. Disconnect the headlight bulb electrical connector.

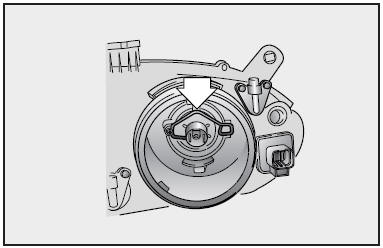

3. Unsnap the headlight bulb retaining wire.

3. Unsnap the headlight bulb retaining wire.
4. Remove the bulb from the three (3) slots on the headlight assembly.
5. Install a new headlight bulb in the three (3) slots on the headlight assembly and snap the headlight bulb retaining wire into position.
6. Connect the headlight bulb electrical connector.
7. Install the headlight bulb cover by turning it clockwise.

Bulb Replacement
...

Front Turn Signal / Position Light Bulb Replacement
1. Remove the bolts from the headlight assembly. ...
