Kia Optima: Front Door. Components and Components Location
Components
|

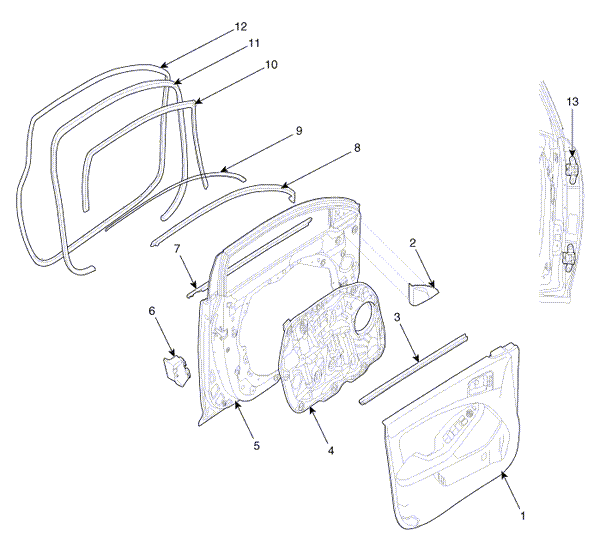

1. Front door trim 2. Front door quadrant inner cover 3. Front door belt inside weatherstrip 4. Front door module 5. Front door panel 6. Front door side impact pad 7. Front door belt outer weatherstrip |
8. Front door upper opening weatherstrip 9. Front door frame molding 10. Front door window glass run assembly 11. Front door body side weatherstrip 12. Front door side weatherstrip 13. Front door hinge |
Adjustment
1.
After loosening the trunk lid
hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or
right or left.
2.
Adjust the trunk lid height by
turnin ...
