Kia Optima: Components and Components Location - Lighting System - Body Electrical System - Kia Optima TF 2011-2023 Service ManualKia Optima: Components and Components Location

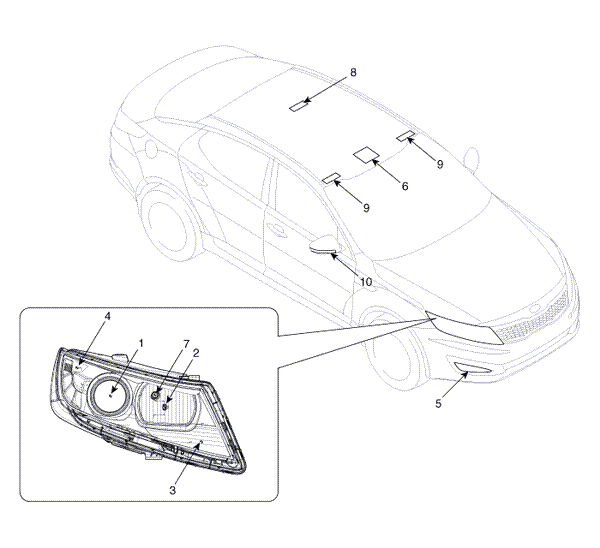

Component Location(1)

1. Head lamp (Low)
2. Head lamp (High) / Head lamp (High) & DRL in Canada
3. Turn signal & position lamp
4. Side marker
5. Front fog lamp
6. Overhead console lamp
7. Dummy
8. Room lamp
9. Vanity lamp
10. Door mirror side repeater(LED)

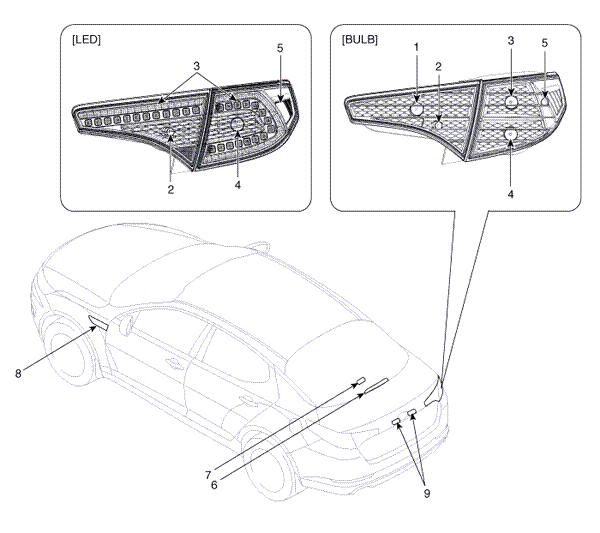

Component Location(2)

1. Tail lamp
2. Back up lamp
3. Stop/Tail lamp
4. Rear turn signal lamp
5. Side marker
6. High mounted stop lamp
7. Luggage lamp
8. Side repeater
9. License plate lamp


Specifications
Specification Item Type Watt (W) Head lamp LOW Bulb (H7) 55 Bulb (D1S) 35 ...

Head Lamps. Components and Components Location
Component(1) 1. Head lamp assembly lens & housing 2. Head lamp (High) lamp 3. Dust cap 4. Socket 5. Turn signal/ Position lamp 6. Head lamp (Low) lamp 7 ...
