Kia Optima: Climate control seat (if equipped) - Automatic adjustment (if equipped) - Seat - Safety features of your vehicle - Kia Optima TF 2011-2023 Owners ManualKia Optima: Climate control seat (if equipped)

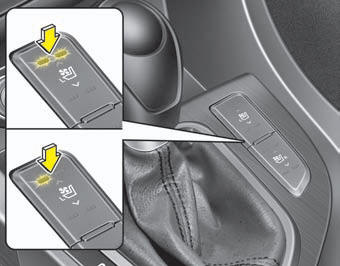

The climate control seat is provided to cool or warm the seat during hot or cold

The climate control seat is provided to cool or warm the seat during hot or cold weather by blowing air through small vent holes on the surface of the seat and seatback. While the engine is running, push the rear portion of the switch to cool the seat, and push the front portion of the switch to warm the seat.

When the operation of the climate control seat is not needed, keep the switch in the OFF position.

Each time you push the button, the airflow is changed as follows:

 The climate control seat defaults to the OFF position whenever the ignition

The climate control seat defaults to the OFF position whenever the ignition switch is turned on.

CAUTION

Passengers should use extreme caution when using the climate control seat to WARNING

Passengers should use extreme caution when using the climate control seat to warm due to the possibility of excess heating or burns. The occupants must be able to feel if the seat is becoming too warm and to turn the seat warmer off. In particular, the driver must exercise extreme care for the following types of passengers:

1. Infants, children, elderly or disabled persons, or hospital outpatients

2. Persons with sensitive skin or those that burn easily

3. Fatigued individuals

4. Intoxicated individuals

5. Individuals taking medication that can cause drowsiness or sleepiness (sleeping pills, cold tablets, etc.)

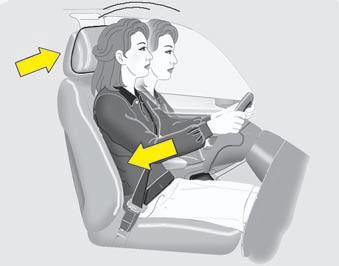

Active headrest

Active headrest

The active headrest is designed to move forward and upward during a rear impact. This helps to prevent the driver's and front passengers head from moving backward and thus helps prevent neck injuries.

A gap between the seat and the headrest release button may appear when seating WARNING

A gap between the seat and the headrest release button may appear when seating on the seat or when you push or pull the seat. Be careful not to get your finger, etc. caught in the gap.

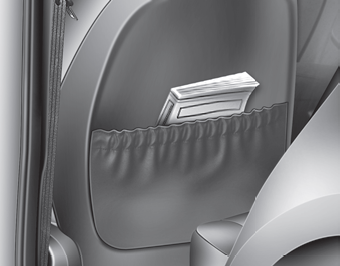

Seatback pocket (if equipped)

Seatback pocket (if equipped)

The seatback pocket is provided on the back of the front passengers seatback.

Do not put heavy or sharp objects in the seatback pocket. In an accident they WARNING - Seatback pocket

Do not put heavy or sharp objects in the seatback pocket. In an accident they could come loose from the pocket and injure vehicle occupants.

For proper operation of the occupant detection system, do not place any items WARNING

For proper operation of the occupant detection system, do not place any items cumulatively weighing over 1kg (2.2 lbs) in the passengers seatback pocket.

Seat warmer (if equipped)
The seat warmer is provided to warm the front seats during cold weather. While the engine is running, push either of the switches to warm the driver's seat or the front passenger's sea ...

Rear seat adjustment
...
