Kia Optima: Tire specification and pressure label
The tires supplied on your new vehicle are chosen to provide the best performance for normal driving.

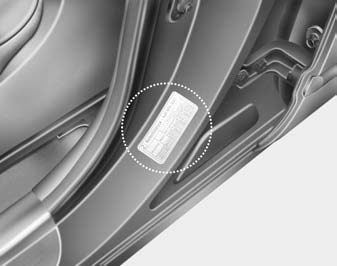

The tire label located on the driver's side center pillar gives the tire pressures recommended for your vehicle.
Vehicle certification label
The vehicle certification label attatched
on the driver’s side center pillar gives the
vehicle identification number (VIN). ...
Engine number
2.4 engine
2.0 engine
The engine number is stamped on the
engine block as shown in the drawing. ...
