Kia Optima: Components and Components Location - AVN System - Body Electrical System - Kia Optima TF 2011-2020 Service ManualKia Optima: Components and Components Location

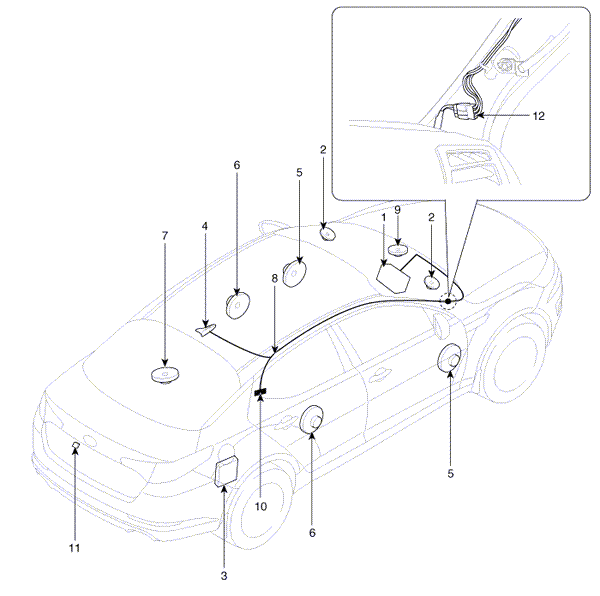

Components Location

1. AVN (A/V & Navigation head unit)
2. Midrange speaker
3. External amplifier
4. Roof antenna (GPS + SDARS)
5. Front door speaker
6. Rear speaker
7. Woofer speaker
8. Antenna feeder cable
9. Center speaker
10. Glass antenna (Radio)
11. Back view camera
12. Feeder cable joint connector

※ SDARS : Satellite Digital Audio Radio Service


Specifications
Specifications Item Specification Power source DC 14.4V (-) ground Frequency range / Channel space FM : 87.5 ~ 107.9 MH ...

Schematic Diagrams
System Block Diagram ...
