Kia Optima: Master Cylinder. Components and Components Location - Brake System - Brake System - Kia Optima TF 2011-2020 Service ManualKia Optima: Master Cylinder. Components and Components Location

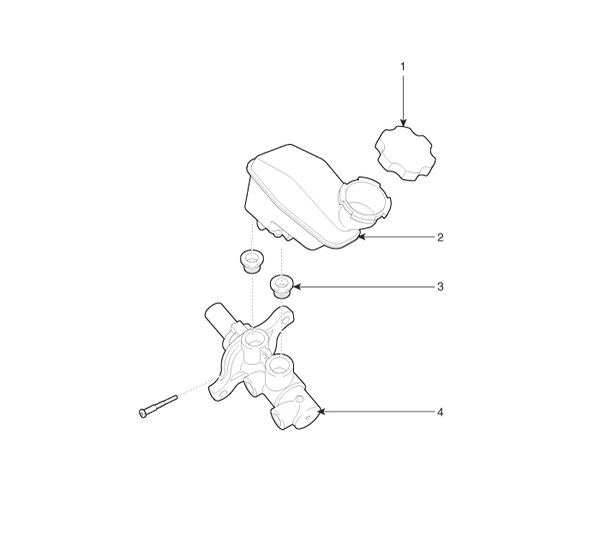

Components

1. Reservoir cap
2. Reservoir
3. Grommet
4. Master cylinder
