Kia Optima: Interior Trim. Components and Components Location - Interior - Body (Interior and Exterior) - Kia Optima TF 2011-2021 Service ManualKia Optima: Interior Trim. Components and Components Location

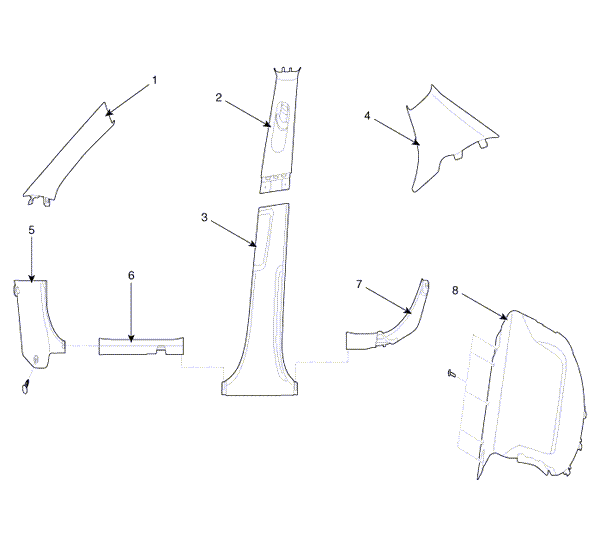

Components

1. Front pillar trim
2. Center pillar upper trim
3. Center pillar lower trim
4. Rear pillar trim
5. Cowl side trim
6. Front door scuff trim
7. Rear door scuff trim
8. Rear package tray trim
