Kia Optima: MAX A/C MODE

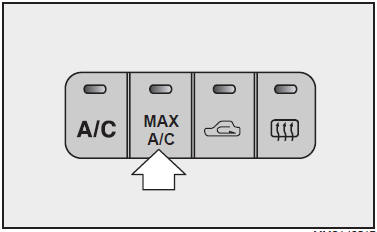

When you select the MAX A/C mode (switch indicator illuminates) while the fan speed is on, it will be set the system automatically as follows;
- the air conditioning system will be turned on.
- the recirculated air position will be selected.
- the face mode will be selected.
If you select the MAX A/C mode, you could not cancel the A/C system and the recirculated air position. Set the fan speed control knob to desired speed and rotate the temperature control knob to the extreme left position.
To turn the MAX A/C mode off, press the MAX A/C mode button again or select the others except face mode.
