Kia Optima: Instrument Cluster. Components and Components Location - Indicators And Gauges - Body Electrical System - Kia Optima TF 2011-2026 Service ManualKia Optima: Instrument Cluster. Components and Components Location

Components

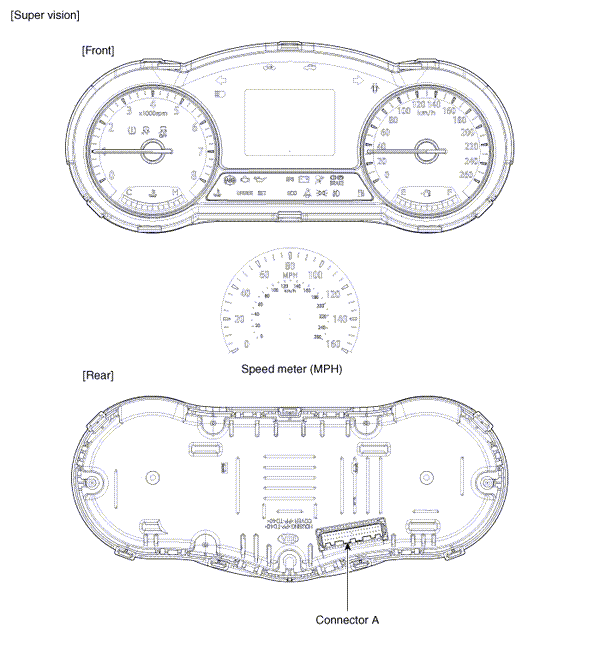

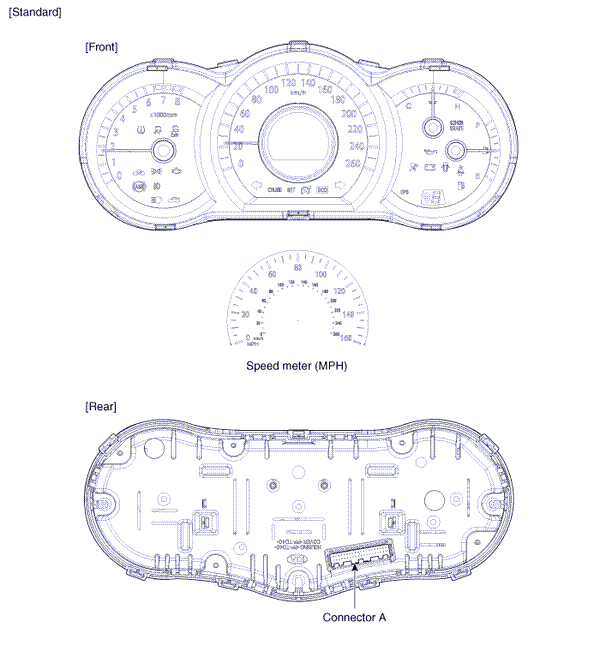

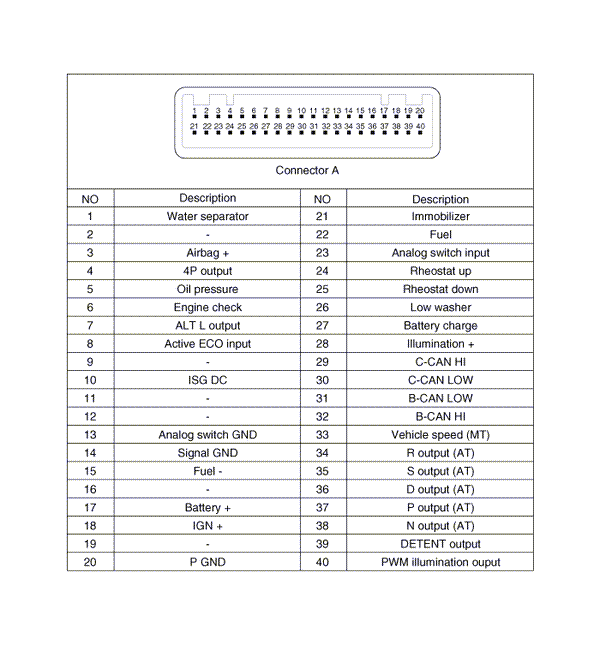

Components and Components Location
Component Location 1. Instrument cluster assembly 2. Seat belt switch 3. Vehicle speed sensor 4. Engine coolant temperature sender 5. Oil pressure switch 6. Brake flui ...
