Kia Optima: Inspection
| 1. | It will be able to diagnose defects of hazard switch with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis. |
| 2. | Select model and "BCM". |
| 3. | Select the "SJB" to check. |

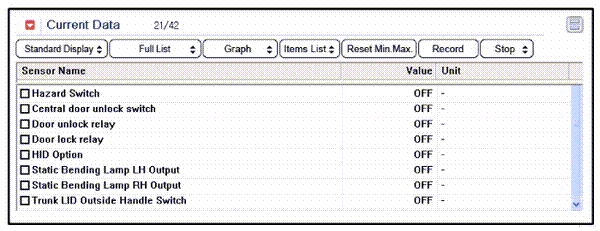

| 4. | Select "Current data", if you
will check current data of hazard switch. It provides input/output status
of SJB.
|
Removal
1.
Disconnect the negative(-) battery
terminal.
2.
Remove the heater comtral module.
(Refer to the HA group - "Controller")
...
See also:
Chart 1
...
Fuel Filler Door Release Actuator. Repair procedures
Inspection
1.
Remove the trunk room left side
trim.(Refer to the BD group - "Interior trim")
2.
Remove the fuel filler door release
actuator (A) after ...
