Kia Optima: Input Speed Sensor. Schematic Diagrams - Automatic Transaxle Control System - Automatic Transaxle System - Kia Optima TF 2011-2021 Service ManualKia Optima: Input Speed Sensor. Schematic Diagrams

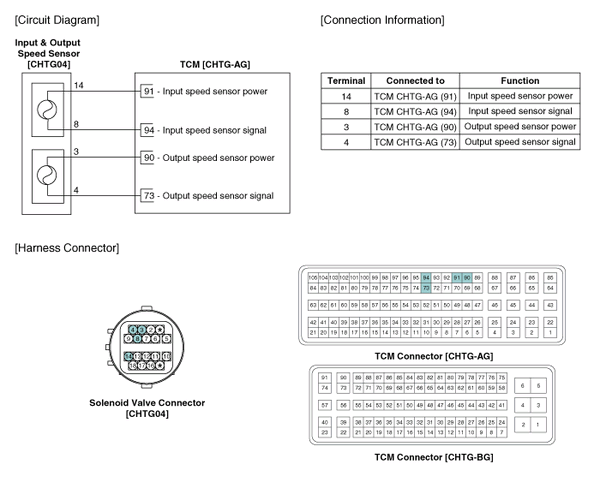

Circuit Diagram


Input Speed Sensor. Specifications
Specifications ▷ Type: Hall effect sensor Operation condition [°C(°F)] ((-)40~150)) -40~302 Air gap(mm)in. (0.95~1.65)0.037~0.065 ...

Input Speed Sensor. Troubleshooting
Signal Waveform Fig 1) Input/Output speed sensor at low speedFig 2) Input/Output speed sensor at high speed ...

See also:

Oil Pump Uni t(OPU) Schematic Diagrams
OPU connector and terminal function OPU terminal function [A] PinDescription1Main relay power2Ground3Motor phase power(U)4Motor phase power(V)5Motor phase power(W) [B] PinDescription1Batt ...

Inspection
1. Check signal waveform of Input & output speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section. ...
