Kia Optima: Front Wiper Motor. Components and Components Location - Windshield Wiper/Washer - Body Electrical System - Kia Optima TF 2011-2020 Service ManualKia Optima: Front Wiper Motor. Components and Components Location

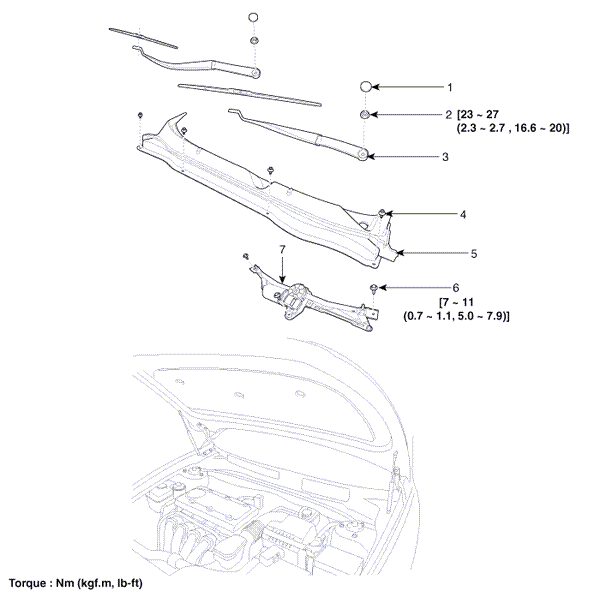

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly


Installation
1. Install the wiper switch. 2. Install the steering column upper and lower shrouds. ...
