Kia Optima: Front Strut Assembly. Components and Components Location - Front Suspension System - Suspension System - Kia Optima TF 2011-2019 Service ManualKia Optima: Front Strut Assembly. Components and Components Location

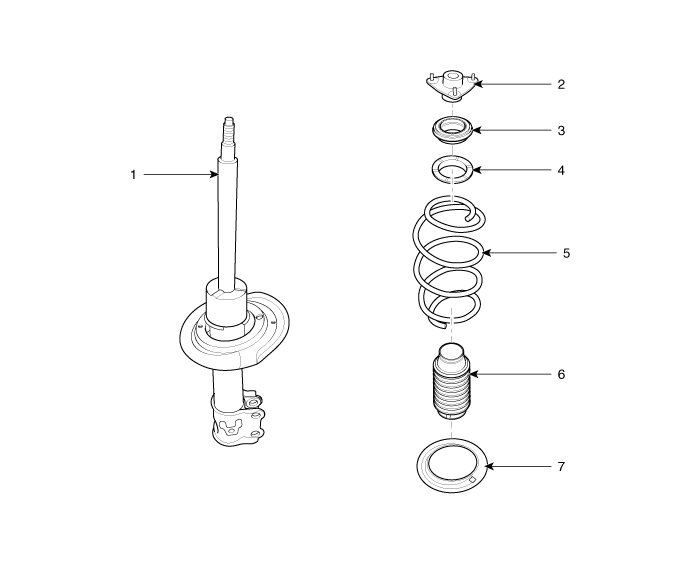

Components

1. Strut assembly
2. Insulator
3. Bearing
4. Spring upper pad
5. Coil spring
6. Dust cover
7. Spring lower pad


Components and Components Location
Components Location 1. Drive shaft 2. Lower arm 3. Front disk 4. Front strut assembly 5. Steering gearbox 6. Front stabilizer bar 7. Sub frame ...
