Kia Optima: Front Hub / Knuckle. Components and Components Location - Front Axle Assembly - Driveshaft and axle - Kia Optima TF 2011-2020 Service ManualKia Optima: Front Hub / Knuckle. Components and Components Location

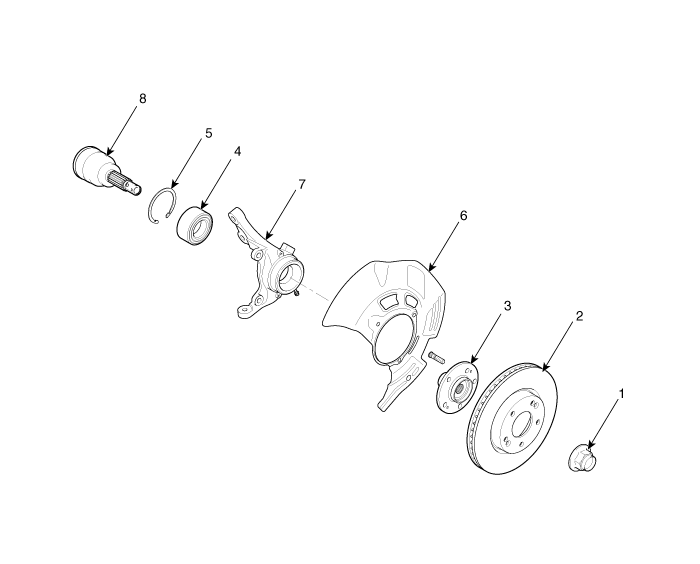

Components

1. Driveshaft nut
2. Brake disc
3. Hub
4. Wheel bearing
5. Snap ring
6. Dust cover
7. Knuckle
8. Driveshaft


Front Axle Assembly
...
