Kia Optima: Adjustment

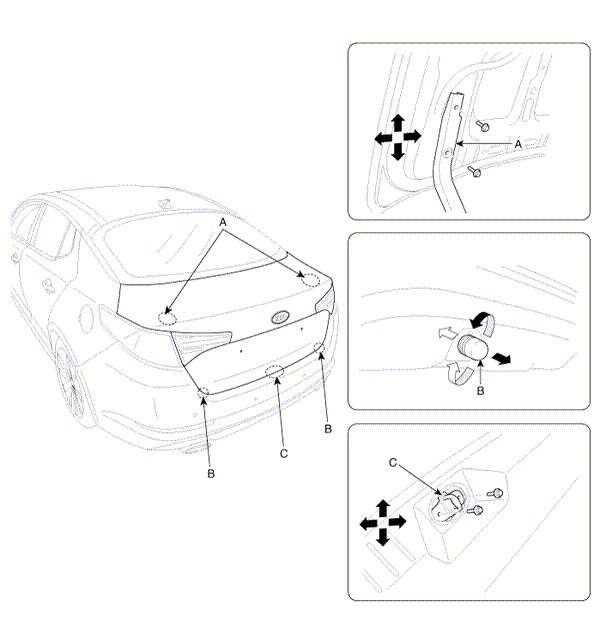

| 1. | After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left. |
| 2. | Adjust the trunk lid height by turning the trunk lid overslam bumpers (B). |
| 3. | After loosening the trunk lid
latch (C) mounting bolts, adjust the trunk lid latch by moving it up or
down, or right or left.
|
Replacement
Trunk Lid Assembly Replacement
•
When removing and installing
the trunk lid, an assistant is necessary.
...
