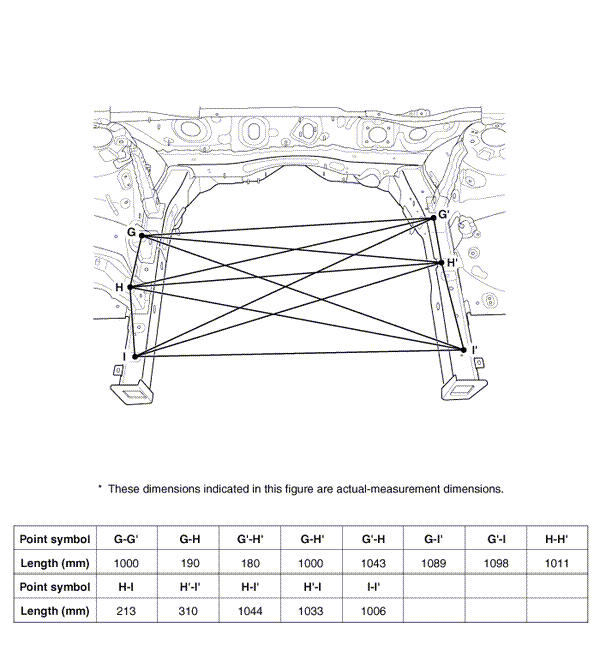

Kia Optima: Front Body C - Front Body. Body Repair - Body Dimensions - Body (Interior and Exterior) - Kia Optima TF 2011-2020 Service ManualKia Optima: Front Body C

Engine mounting bracket hole (Ø11)

Transaxle mounting hole (Ø13)

Engine mounting bracket hole (Ø11)

Transaxle mounting hole (Ø13)

Front side member tooling hole (Ø9)

Front side member tooling hole (Ø9)



Front Body B
Hood hinge mounting hole (Ø10) Fender apron upper inner panel tooling hole (Ø6.6) Engine mo ...
