Kia Optima: Airbag-advanced supplemental restraint system

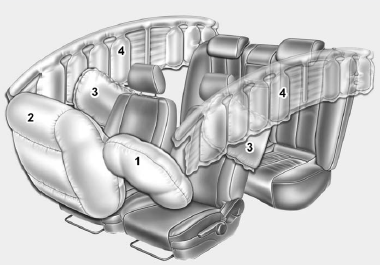

* The actual air bags in the vehicle may differ from the illustration.
(1) Driver’s front air bag
(2) Passenger’s front air bag
(3) Side impact
air bag
(4) Curtain air bag
WARNING
Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.
- How does the air bag system operate
- Air bag warning light
- SRS components and functions
- ODS (Occupant Detection System)
- Driver's and passenger's front air bag
- Side impact air bag
- Curtain air bag
- Why didn’t my air bag go off in a collision? (Inflation and non-inflation conditions of the air bag)
- SRS Care
- Air bag warning label
