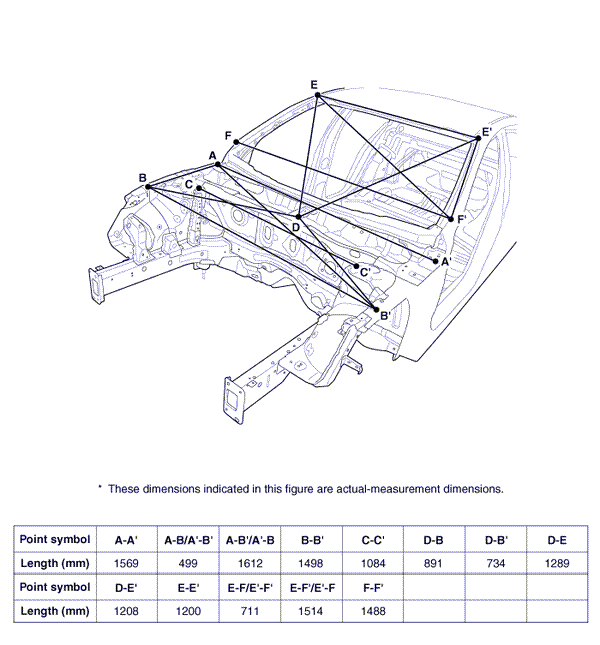

Kia Optima: Front Body A - Front Body. Body Repair - Body Dimensions - Body (Interior and Exterior) - Kia Optima TF 2011-2021 Service ManualKia Optima: Front Body A

Hood hinge mounting hole (Ø10)

Fender apron upper inner panel tooling hole (Ø6.6)
Front suspension mounting hole (Ø11)

Cowl panel tooling hole (Ø8)

Front pillar corner

Front pillar corner


Front Body. Body Repair
...

Front Body B
Hood hinge mounting hole (Ø10) Fender apron upper inner panel tooling hole (Ø6.6) Engine mo ...
