Kia Optima: ETC (Electronic Throttle Control) System. Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2018 Service ManualKia Optima: ETC (Electronic Throttle Control) System. Schematic Diagrams

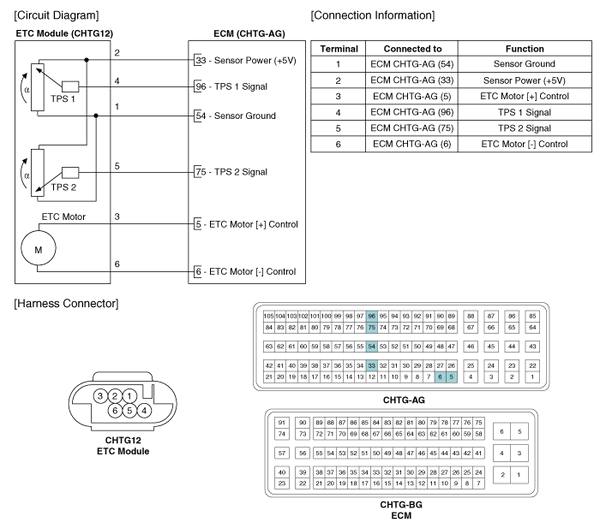

Circuit Diagram


ETC (Electronic Throttle Control) System. Specifications
Specification [Throttle Position Sensor (TPS)] Throttle Angle(°) Output Voltage(V) TPS1 TPS2 0 0.0 5.0 ...
