Supplemental Restraint System Control Module (SRSCM)

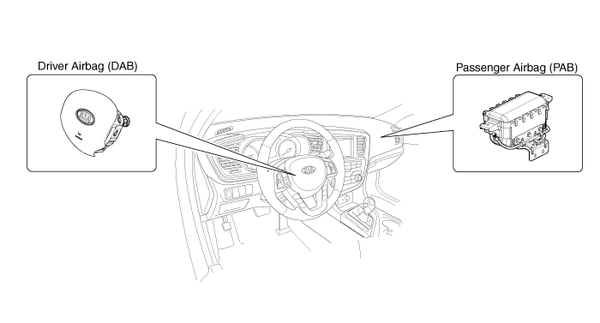

Driver Airbag (DAB) / Passenger Airbag (PAB)

Side Airbag (SAB)

Curtain Airbag (CAB)

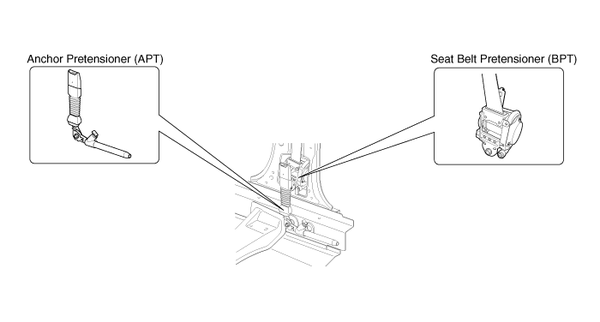

Seat Belt Pretensioner (BPT) / Anchor Pretensioner (APT)

Front Impact Sensor (FIS)

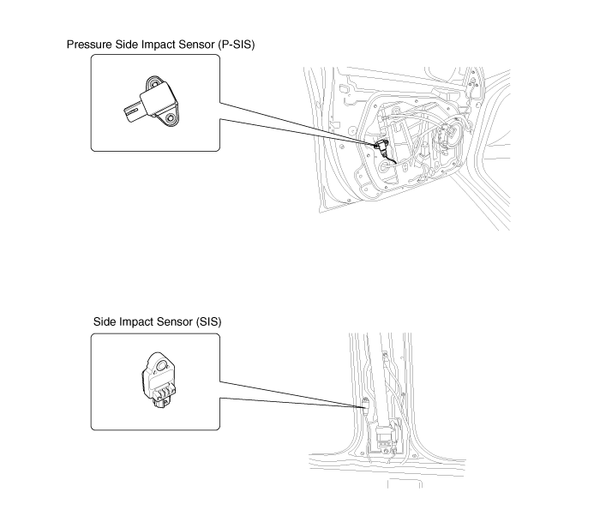

Side Impact Sensor (SIS)


Components
1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Pressure Side Impact Sensor (P-SIS) 6. Side Impact Sensor (SIS) 7. Side A ...

SRSCM
...

See also:

Installation
1. Install the smart junction box. 2. Install the crash pad lower panel. 3. Check that all system operates normally. ...

Disassembly
- Do not work in a dusty or dirty place. - Do not touch the circuit board with ...

Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel (A). 3. Remove the reinforce panel after loosening th ...
