Kia Optima: Components - Components and Components Location - General Information - Restraint - Kia Optima TF 2011-2021 Service ManualKia Optima: Components

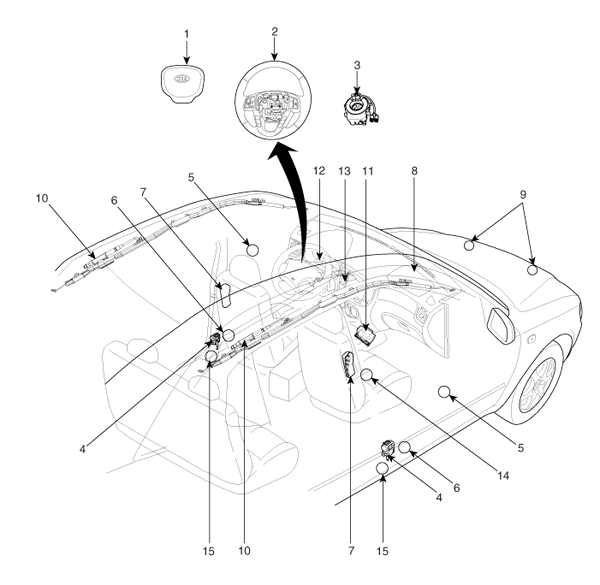

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring
4. Seat Belt Pretensioner (BPT)
5. Pressure Side Impact Sensor (P-SIS)
6. Side Impact Sensor (SIS)
7. Side Airbag (SAB)
8. Passenger Airbag (PAB)
9. Front Impact Sensor (FIS)
10. Curtain Airbag (CAB)
11. Supplemental Restraint System Control Module(SRSCM)
12. Airbag Warning Lamp
13. Telltale Lamp
14. Weight Classification System (WCS) Module
15. Anchor Pretensioner (APT)


Components and Components Location
...

Components Location
Supplemental Restraint System Control Module (SRSCM) Driver Airbag (DAB) / Passenger Airbag (PAB) Side Airbag (SAB) Curtain Airbag (CA ...
