Kia Optima: Components and Components Location - Power Windows - Body Electrical System - Kia Optima TF 2011-2019 Service ManualKia Optima: Components and Components Location

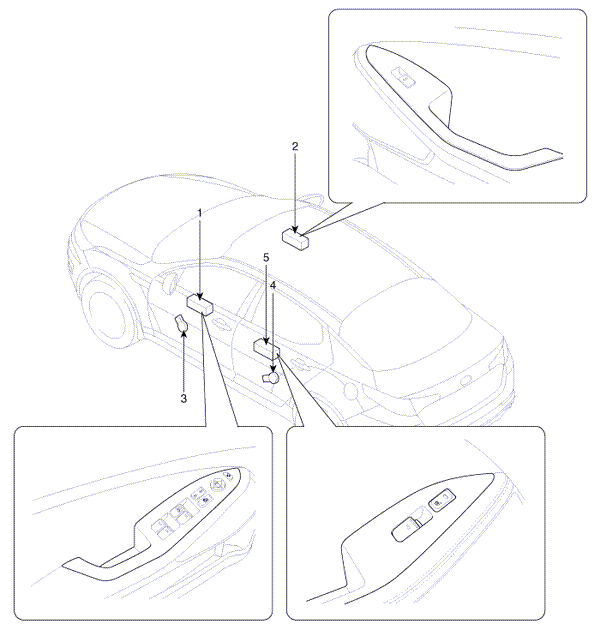

Component Location

1. Driver power window main switch
2. Passenger power window switch
3. Front window motor
4. Rear window motor
5. Rear window switch
