Kia Optima: Engine Mounting. Components and Components Location - Engine And Transaxle Assembly - Engine Mechanical System - Kia Optima TF 2011-2019 Service ManualKia Optima: Engine Mounting. Components and Components Location

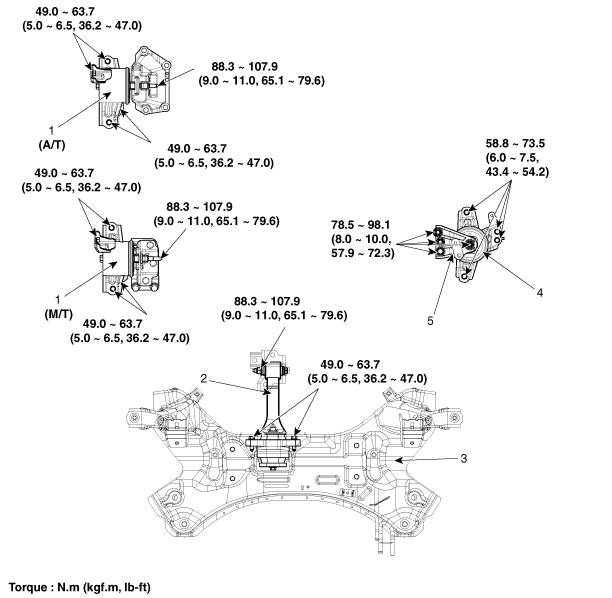

1. Transaxle mounting bracket
2. Roll rod bracket
3. Sub frame
4. Engine mounting bracket
5. Engine mounting support bracket


Engine And Transaxle Assembly
...

Engine And Transaxle Assembly. Repair procedures
...
