Kia Optima: Components and Components Location - Fuel Filler Door - Body Electrical System - Kia Optima TF 2011-2020 Service ManualKia Optima: Components and Components Location

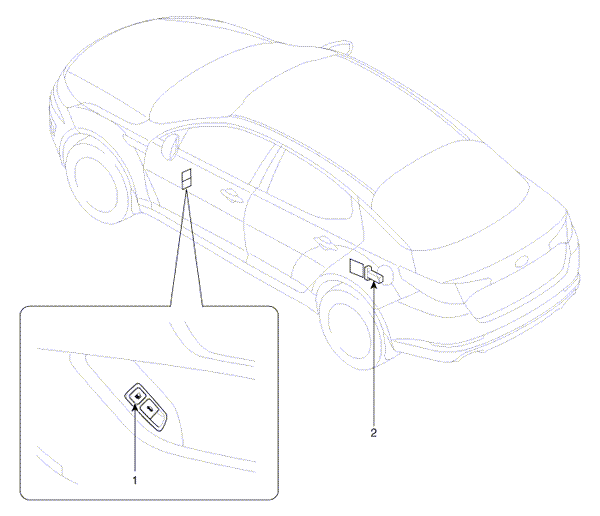

Component Location

1. Fuel filler door open switch
2. Fuel filler door release actuator
