Kia Optima: Components and Components Location - ESC(Electronic Stability Control) System - Brake System - Kia Optima TF 2011-2018 Service ManualKia Optima: Components and Components Location

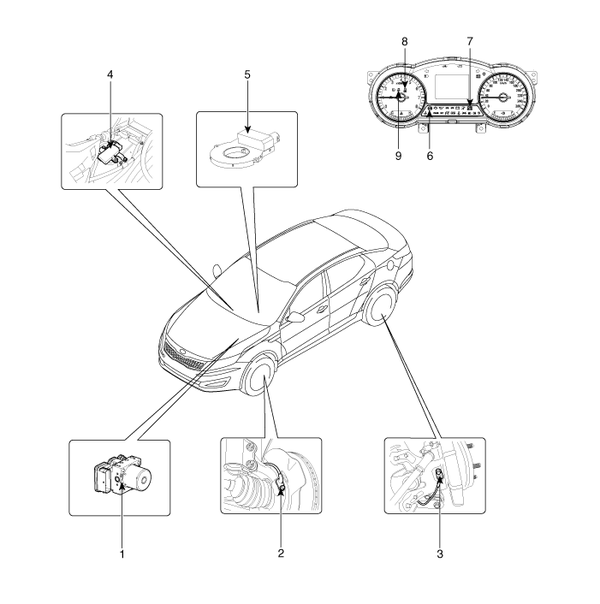

Components

1. HECU module
2. Front wheel speed sensor
3. Rear wheel speed sensor
4. Yaw rate & Lateral G sensor
5. Steering angle sensor
6. ABS Warning lamp
7. Parking brake/EBD warning lamp
8. ESC OFF lamp
9. ESC Function/Warning lamp


ESC(Electronic Stability Control) System
...

Description and Operation
...
