Kia Optima: Components and Components Location - Tire Pressure Monitoring System - Suspension System - Kia Optima TF 2011-2021 Service ManualKia Optima: Components and Components Location

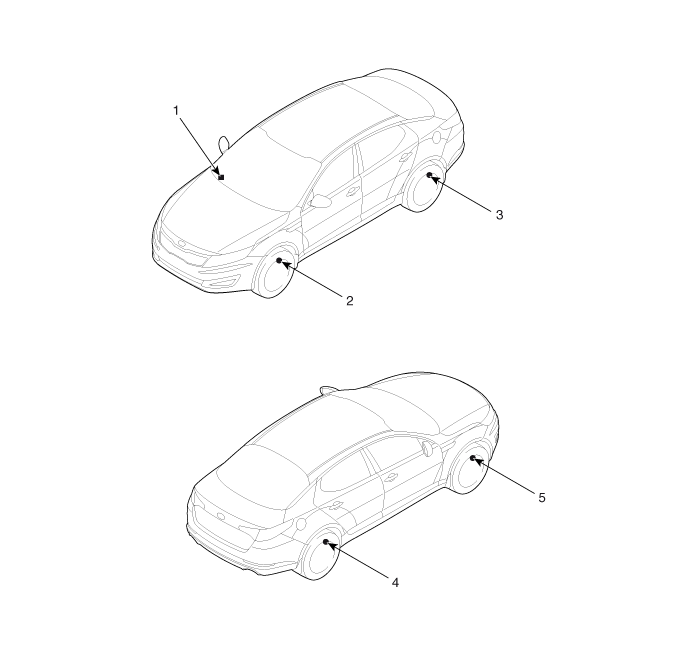

Components Location

1. Receiver
2. TPMS sensor (FL)
3. TPMS sensor (RL)
4. TPMS sensor (RR)
5. TPMS sensor (FR)

Tire Pressure Monitoring System
...

Description and Operation
Description Tread Lamp - Tire Under Inflation / Leak Warning. 1. Turn on condition A. When tire pressure is below allowed threshold ...
