Kia Optima: Components - 1 [ General ] - Rear Seat. Components and Components Location - Seat & Power Seat - Body (Interior and Exterior) - Kia Optima TF 2011-2020 Service ManualKia Optima: Components - 1 [ General ]

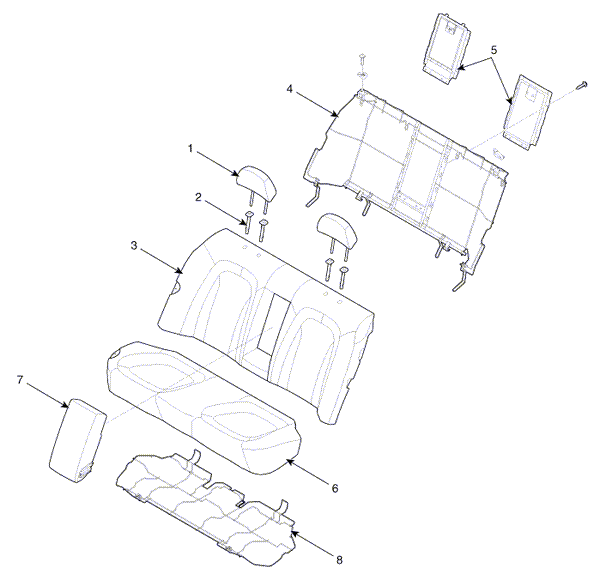

1. Headrest
2. Headrest guide
3. Rear seat back cover
4.Rear seat back frame assembly
5. Rear back armrest board
6. Rear seat cushion cover
7. Rear back armrest
8. Rear seat cushion frame assembly

Rear Seat. Components and Components Location
...

Components - 2 [ Seat folding ]
1. Headrest 2. Headrest guide 3. Rear side cover 4. Rear side frame assembly 5. Rear seat back cover 6. Rear back armrest 7. Rear seat cushion cover 8. Rear ...
