Kia Optima: Components(1) - Front Bumper. Components and Components Location - Bumper - Body (Interior and Exterior) - Kia Optima TF 2011-2020 Service ManualKia Optima: Components(1)

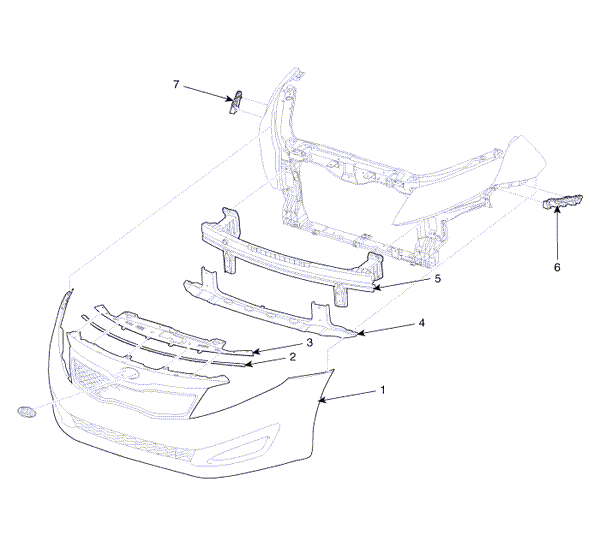

1. Front bumper cover
2. Front bumper upper strip assembly
3. Radiator grill upper cover
4. Front bumper lower stiffner
5. Front bumper rail assembly
6. Front bumper side bracket [LH]
7. Front bumper side bracket [RH]

Front Bumper. Components and Components Location
...

Components(2)
1. Front bumper cover 2. Front bumper lip assembly 3. Radiator grill 4. Front bumper lower side molding 5. Front fog lamp 6. Wiring harness assembly 7. Front b ...
