Kia Optima: Brake Line. Components and Components Location - Brake System - Brake System - Kia Optima TF 2011-2021 Service ManualKia Optima: Brake Line. Components and Components Location

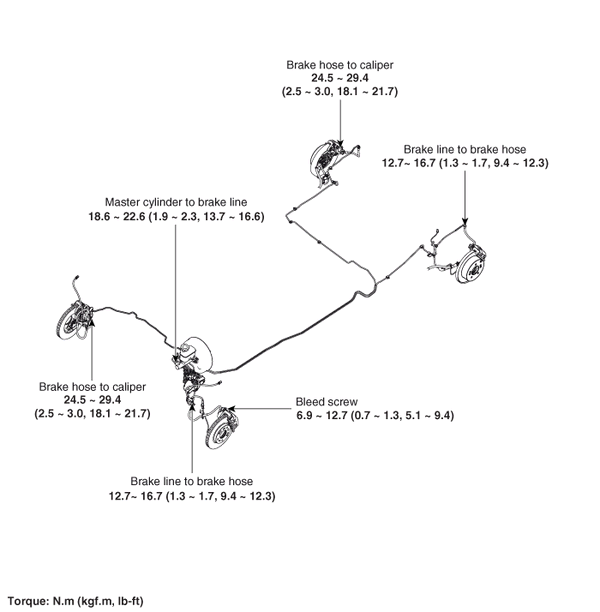

Components


Installation
1. Installation is the reverse of removal. 2. After installation, bleed the brake system. (Refer to Brake system bleeding) ...

Brake Line. Repair procedures
...
