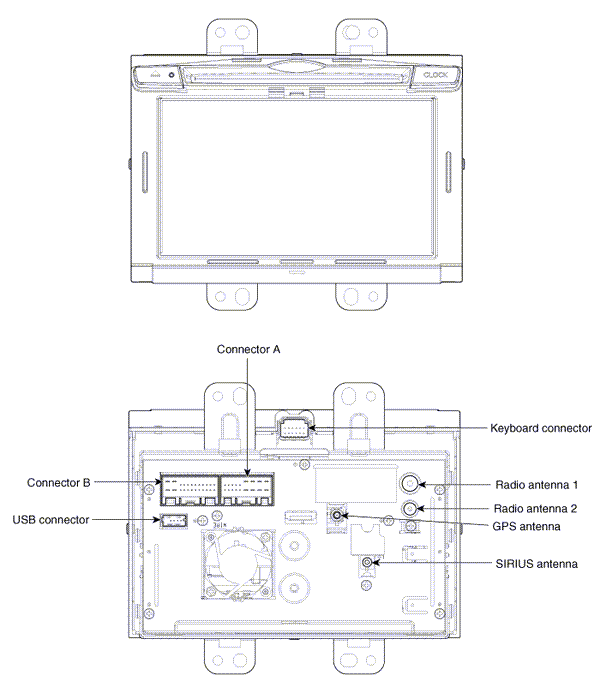

Kia Optima: AVN Head Unit. Components and Components Location
Components

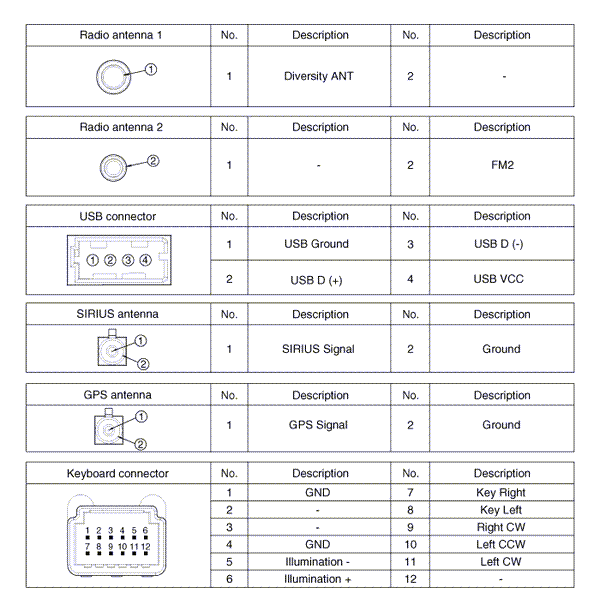

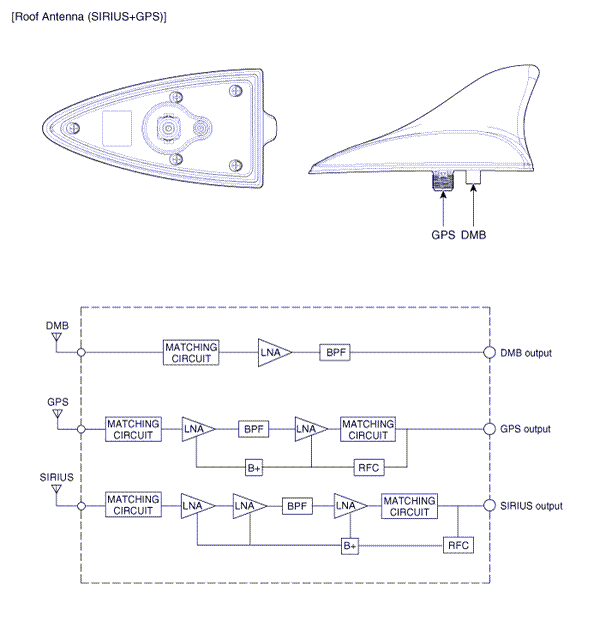

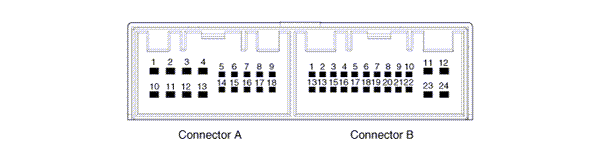

| AVN (A/V & Navigation) Head Unit Connector |
|
NO |
Connector A |
Connector B |
|
1 |
- |
CAN H |
|
2 |
Video V |
- |
|
3 |
Video V GND |
- |
|
4 |
Video GND |
Steering remote control |
|
5 |
SPDIF GND |
- |
|
6 |
SPDIF + |
- |
|
7 |
- |
iPod Video |
|
8 |
Illumination + |
AUX R IN |
|
9 |
R position |
AUX GND |
|
10 |
- |
MIC+ (B/T) |
|
11 |
Video power |
ACC |
|
12 |
Navi voice - |
B+ |
|
13 |
Navi voice + |
CAN L |
|
14 |
- |
AV-TAIL |
|
15 |
SPDIF - |
P position |
|
16 |
Door unlock |
Speed |
|
17 |
Illumination - |
Steering GND |
|
18 |
Antenna power |
- |
|
19 |
|
iPod V GND |
|
20 |
AUX detect |
|
|
21 |
AUX L IN |
|
|
22 |
MIC- (B/T) |
|
|
23 |
Main GND |
|
|
24 |
Main GND |
