Kia Optima: Valve Body. Components and Components Location - Hydraulic System - Automatic Transaxle System - Kia Optima TF 2011-2022 Service ManualKia Optima: Valve Body. Components and Components Location

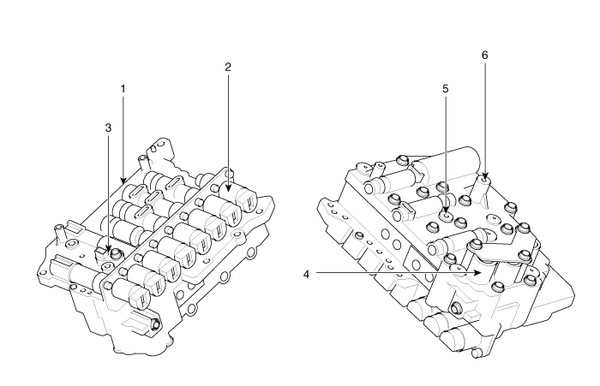

Components Location

1. PCV adjust screw
2. Solenoid valve
3. Oil temperature sensor
4. Accumulator
5. Low & reverse brake(LR/B) pressure flow hole
6. Under drive brake (UD/B) pressure flow hole

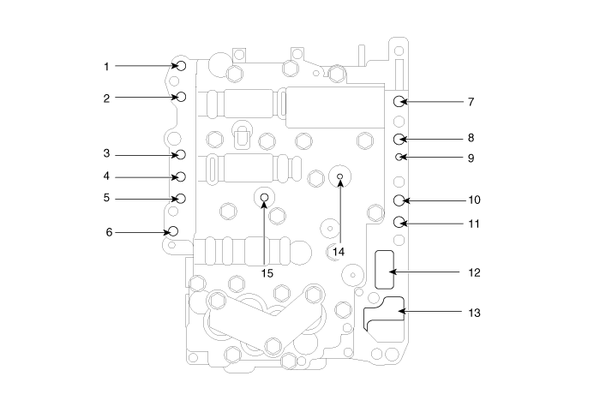

Valve Body Flow

1. To cooler
2. From cooler
3. Lubrication(rear)
4. Overdrive pressure
5. Reducing pressure (red2)
6. Reducing pressure (red1)
7. From damper pressure
8. To damper pressure
9. Lubrication(front)
10. 35R clutch pressure
11. 26 brake pressure
12. From oil pump
13. To oil pump
14. Underdrive pressure
15. Low & reverse pressure
