Kia Optima: Speedometer - Gauges - Instrument cluster - Features of your vehicle - Kia Optima TF 2011-2022 Owners ManualKia Optima: Speedometer

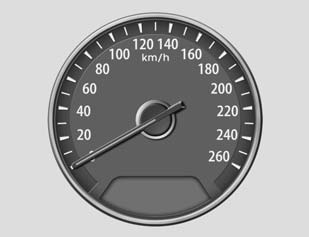

Type A

Type A

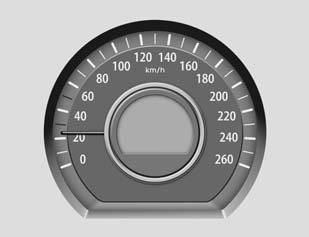

Type B

Type B

The speedometer indicates the forward speed of the vehicle.

The speedometer is calibrated in kilometers per hour and/or miles per hour.
