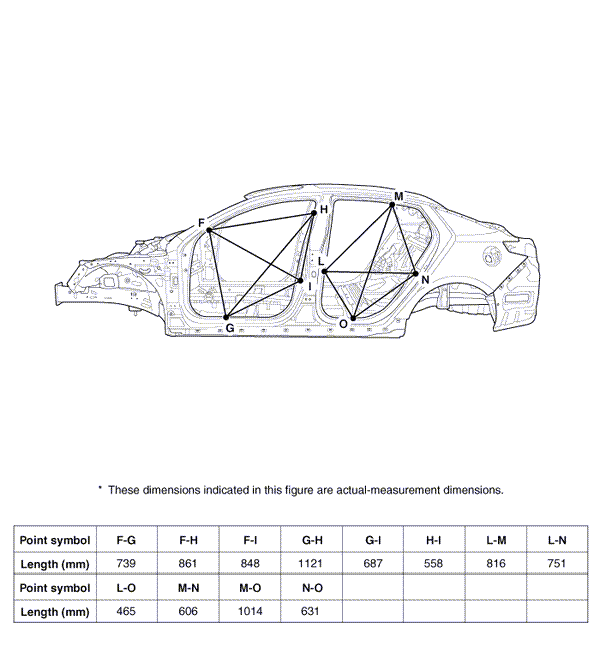

Kia Optima: Side Body B - Side Body. Body Repair - Body Dimensions - Body (Interior and Exterior) - Kia Optima TF 2011-2022 Service ManualKia Optima: Side Body B

Side outer panel notch

Side outer panel notch

Side outer panel notch

Front door switch mounting hole (Ø10)

Side outer panel notch

Side outer panel notch


Rear door switch mounting hole (Ø10)

Side outer panel notch
