Kia Optima: Rear Combination Light Bulb Replacement - Bulb Replacement - Maintenance - Kia Optima MS/Magentis 2000-2005 Owners ManualKia Optima: Rear Combination Light Bulb Replacement

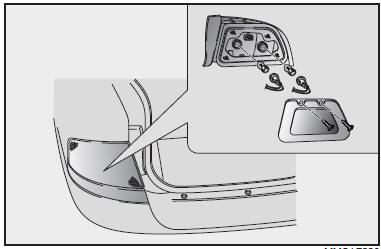

1. Using a cross-tip screwdriver, remove the cover.

1. Using a cross-tip screwdriver, remove the cover.
2. Turn the bulb socket counterclock-wise and remove it from the housing.
3. Push the bulb in, then rotate it one quarter turn counterclockwise and remove the bulb from the socket.
4. Insert a new bulb in the socket, then push the bulb in and rotate it one quarter turn clockwise to lock the bulb in place.
5. Re-install the bulb socket into the rear combination light assembly and rotate it onequarter turn clockwise to lock the socket in place.
6. Re-install the cover.
