Kia Optima: RCV Control Solenoid Valve. Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2022 Service ManualKia Optima: RCV Control Solenoid Valve. Schematic Diagrams

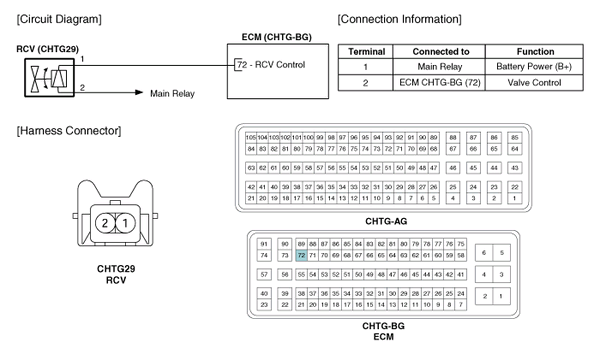

Circuit Diagram


RCV Control Solenoid Valve. Specifications
Specification Item Specification Coil Resistance (Ω) 28.3 ~ 31.1 [20°C(68°F)] ...
