Kia Optima: Outside Rearview Mirrors Electric Remote Control

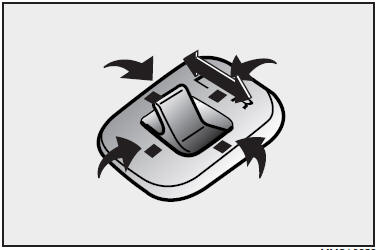

The electric remote control mirror switch, located on the left side of the instrument
panel on the drivers door, allows you to adjust the position of the left and right
outside rearview mirrors. To adjust the position of either mirror, move the lever
to R or L to select the right side mirror or the left side mirror, then press a
mark (
) on the mirror adjustment control
to position the selected mirror up, down, left or right.
✽ NOTICE
The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is depressed. Do not depress the switch longer than necessary, the motor may be damaged.
