Push the lens to turn the map lamp on or off. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger.
• DOOR : In the DOOR position, the map lamp and the room lamp come on when any door is opened regardless of the ignition switch position. When doors are unlocked by the transmitter (or smart key), the map lamp and the room lamp come on for approximately 30 seconds as long as any door is not open.
The map lamp and the room lamp goes out gradually after approximately 30 seconds if the door is closed. However, if the ignition switch is ON or all doors are locked, the map lamp and the room lamp will turn off immediately. If a door is opened with the ignition switch in the ACC or LOCK position, the map lamp and the room lamp stays on for about 20 minutes. However, if a door is opened with the ignition switch in the ON position, the map lamp and the room lamp stays on continuously. If the type B room lamp switch is OFF, it doesn't work.
• OFF : The lights turn off even if a door is opened.

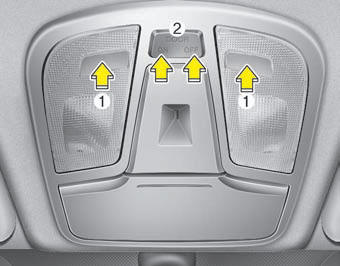

When the lamp is turned ON by pressing the lens (1), the lamp does not turn off even if the switch (2) is in the OFF position.
• ON : The map lamp and the room lamp stay on at all times.
Disassembly
-
Do not work in a dusty
or dirty place.
-
Do not touch the circuit
board with ...
Removal
1.
Remove the timing chain. (Refer
to Timing system in this group)
2.
Install a stopper pin (A) after
compressing the balance shaft chain tensioner.
3.
...
Engine Temperature Gauge
This gauge shows the temperature of the engine coolant when the ignition switch
is ON.
If the gauge pointer moves beyond the normal range area toward the H position,
it indicates overheating that ...
