Kia Optima: Inspection
| 1. | The windshield deicer switch inputs can be checked using the GDS. |
| 2. | To check the input value of windshield deicer switch, select option "Body Control Module". |

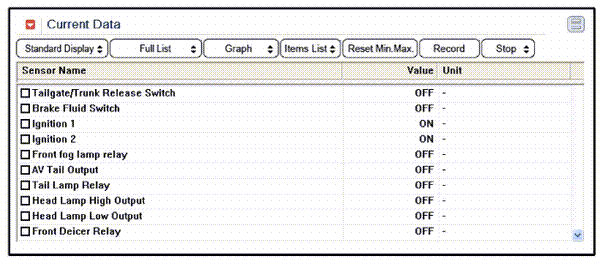

| 3. | Select option "Current Data of
smart junction box".
|

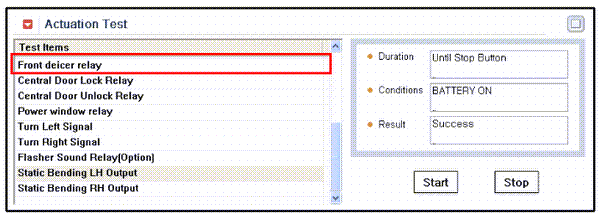

| 4. | To check the input value of windshield
deicer switch in force mode, select option "Actuation Test of smart junction
box".
|
Removal
1.
Disconnect the negative (-) battery
terminal.
2.
Remove the lower (A) after loosening
the mounting screws.(Refer to the BD group - "Crash pad")
...
